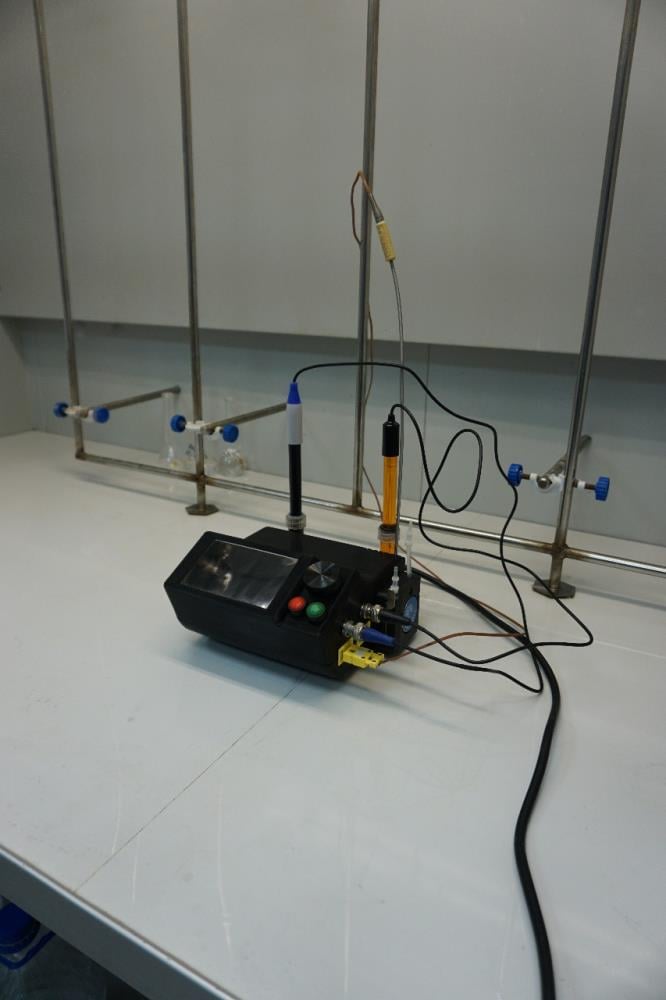

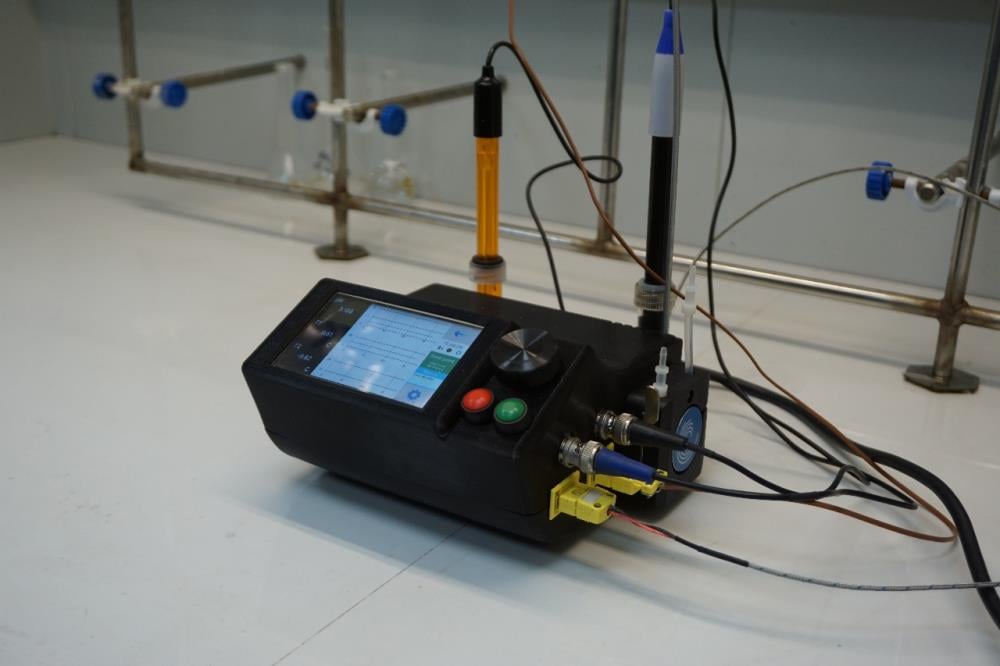

TitroPal is a multifunctional laboratory workstation that automates the process of reagent addition, freeing the chemist from the chore of the manual monitoring and allowing to implement really long multiweek or even month experiments.

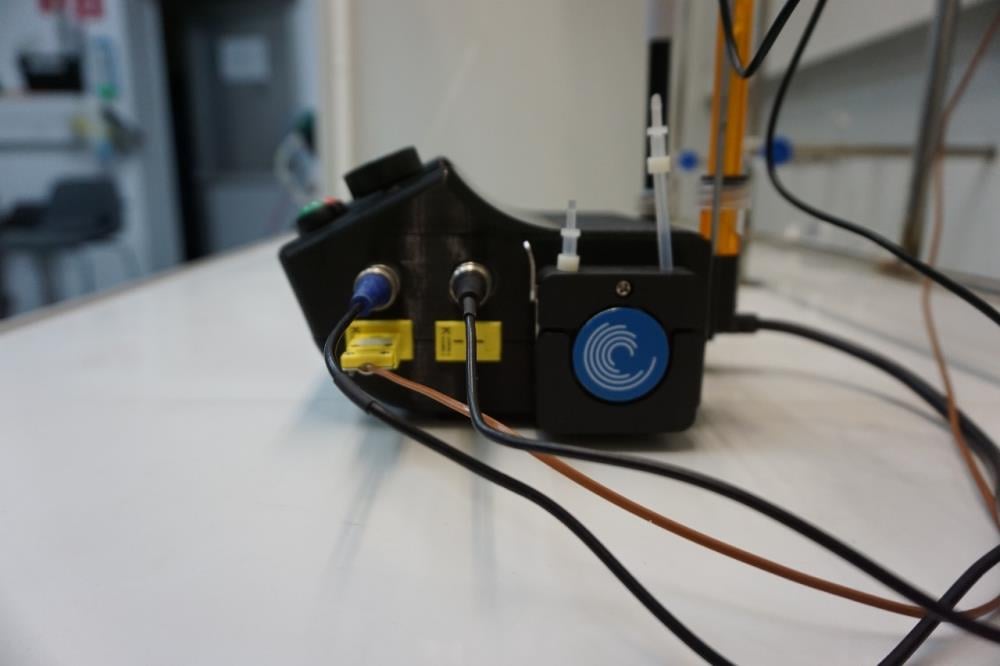

TitroPal incorporates high precision peristaltic pump (up to 0.1uL precision), temperature, pH and ORP sensors. Our custom models connect them, keeping the parameters in the desire range, and warning user in advance in case the manual intervention is needed.
Automated Control & Pumping
-
Stepwise titration profiles and timed-dosing sequences
-
Programmable logic (e.g., add reagent until T = 30 °C, dose at set temperature range, then measure the parameters without the addition for a set amount of time)
-
Error <0.05% after daily pump calibration
-
Automatic halt on out-of-range readings with sound and app alerts
Data Logging & Export
-
Built-in 4 GB eMMC (expandable to 32 GB) for binary experiment logs
-
One-click CSV export via USB-mass-storage interface
-
Timestamped data streams for all sensors and pump actions
-
Multiple CSV files per experiment for easy batch analysis
Calibration & Accuracy Management
-
On-board 3-point pH-electrode calibration with importable buffer sets
-
ORP, temperature, pressure, voltage, and current calibration routines
-
User-configurable sensor profiles and calibration curves
Safety & Redundancy
-
Configurable threshold limits per parameter
-
Instant pump shut-off on critical alarm conditions
-
Watchdog-driven firmware monitoring
User Interface
-

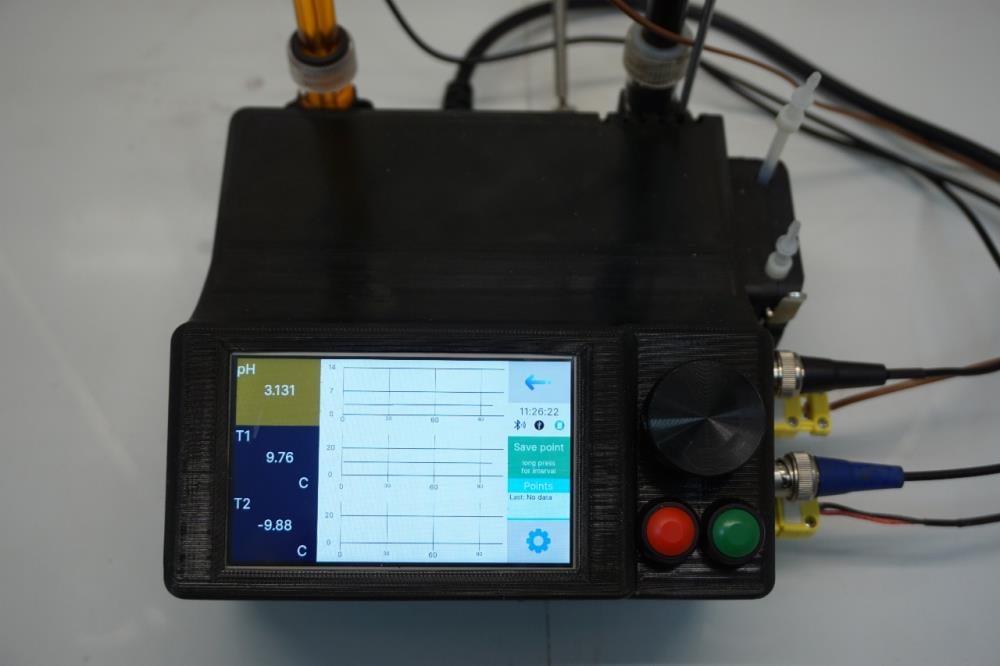

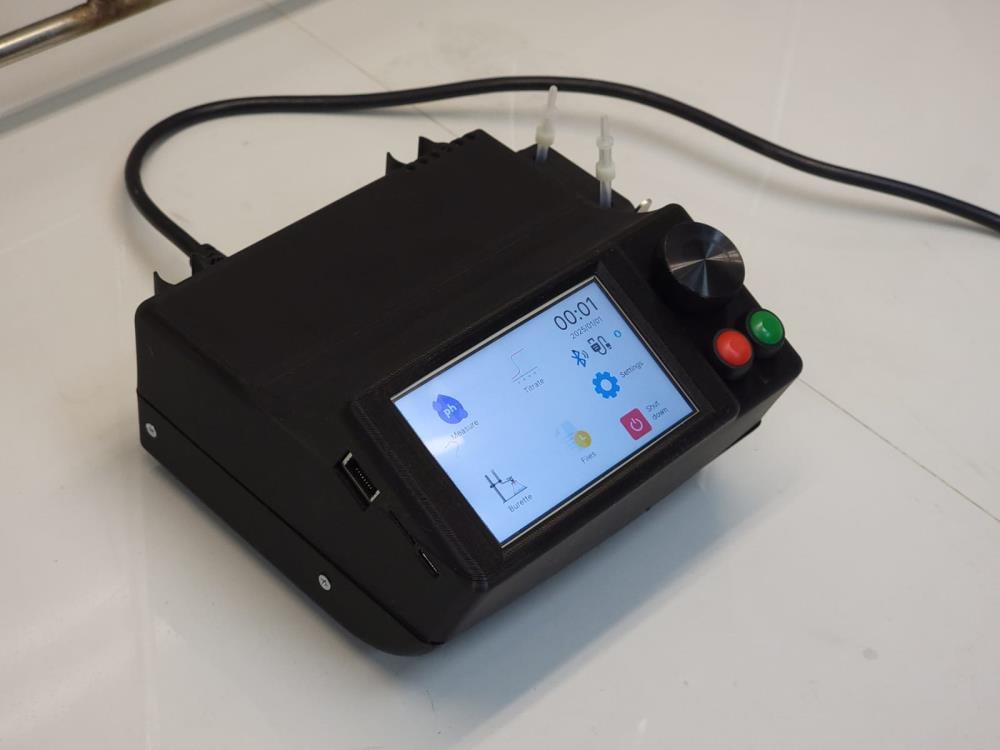

Integrated 4″ IPS resistive touchscreen (800 × 480)
-
Hierarchical menus for experiment setup, calibration, logs, and network settings
-
Physical “panic” button for emergency stop
Connectivity & Remote Access
-
Bluetooth Low Energy interface with companion mobile app
-
LAN/Wi-Fi web server for browser-based control and live dashboards
-
Firmware updates over-the-air
